Little Cottage Co. Classic 4' Gambrel Barn Shed Kit

Little Cottage Co. Classic Gambrel Barn 4' Sidewall

Build your dream garden and add value to your property, with our Classic Style Garden Sheds!

Delivery Instruction

Are you tired of your tools and equipment being exposed to harsh weather conditions? Keep them protected in style with an Amish Classic Gambrel Barn 4' Sidewall Kit. The classic woodshed look is a perfect complement to any home or garden. Don't risk damage from the sun, rain, and snow – choose the Classic Gambrel Barn for secure storage. Ideal for farmers and large landowners, this classic wooden barn design will meet all your storage needs. Don't settle for less – invest in the best with the Amish Classic Gambrel Barn today.

The Gambrel comes standard with a 5′ double door on the 10′ through 12'-wide buildings and a 4'-wide door on the 8′ sheds. A variety of options are available including windows, flower boxes, shutters, cupolas, and extra doors.

This shed is available from 8′ x 8′ up to 12′ x 24′. Larger sizes are available here.

Panelized Kits: Come in pre-assembled panelized sections. Wall siding is already attached to the wall framing. Already pre-assembled as much as possible before shipped to you. Easier to put together and saves significant time. All hardware and screws are included.

Pre-Cut Kits: Comes with all wood pre-cut to exact lengths. No cutting required. You must assemble the pieces into sections and then put the sections together. All hardware and screws are included. No Customizations on Pre-Cut Structures.

IMPORTANT NOTE:
You are required to offload the shipment - either a forklift or 2-3 people on the day of the delivery to manually unload the pieces on the pallet one by one. Each individual piece weighs around 1-100 lbs. so it is fairly easy to do with 2-3 people. Some customers have friends/neighbors/family assist, or hire 2 people. FedEx will schedule the delivery date and time that works for you.

Lead time for production is 5-10 days for the pre-cut kits and 4-6 weeks for the panelized kits. Your shed will be delivered in 2-9 days depending on the distance from our site in Ohio to your home.

Want to order now, but have your shed shipped next spring once the weather is better? Order now to lock in the current price before the cost goes up. Pay only 10% deposit and the remaining amount when your shed is ready to ship in the spring. Contact us for additional details.

SPECIFICATIONS:

FEATURES:

• Made with Amish craftsmanship: The shed is built by skilled Amish craftsmen who are known for their attention to detail, high-quality construction, and use of durable materials. This ensures that your shed will be sturdy, long-lasting, and visually appealing.

• Prefabbed and ready to assemble: The shed comes with everything pre-cut and ready to be assembled, meaning you won't need to spend time cutting any additional pieces. This makes the assembly process more straightforward and faster, saving you time and effort.

• 4′ sidewalls with 16″ o.c. Wall Studs: The 4-foot sidewalls provide ample headroom inside the shed, while the 16-inch on-center wall studs ensure a strong and stable structure that can withstand various weather conditions.

• Double Door Opening: The shed features a 5′ x 6′ double door opening for 10 ft. to 12 ft. wide units and a 4′ x 6′ double door opening for 8′ wide units. This allows for easy access to your stored items and makes it convenient to move larger items in and out of the shed.

• 5/12" Roof Pitch: The shed's roof is designed with a 5/12" pitch, providing better water runoff and adding to the shed's overall durability.

• 2 Gable Vents: These vents help regulate the temperature and humidity inside the shed, ensuring proper air circulation and preventing the build-up of moisture that could lead to mold or mildew.

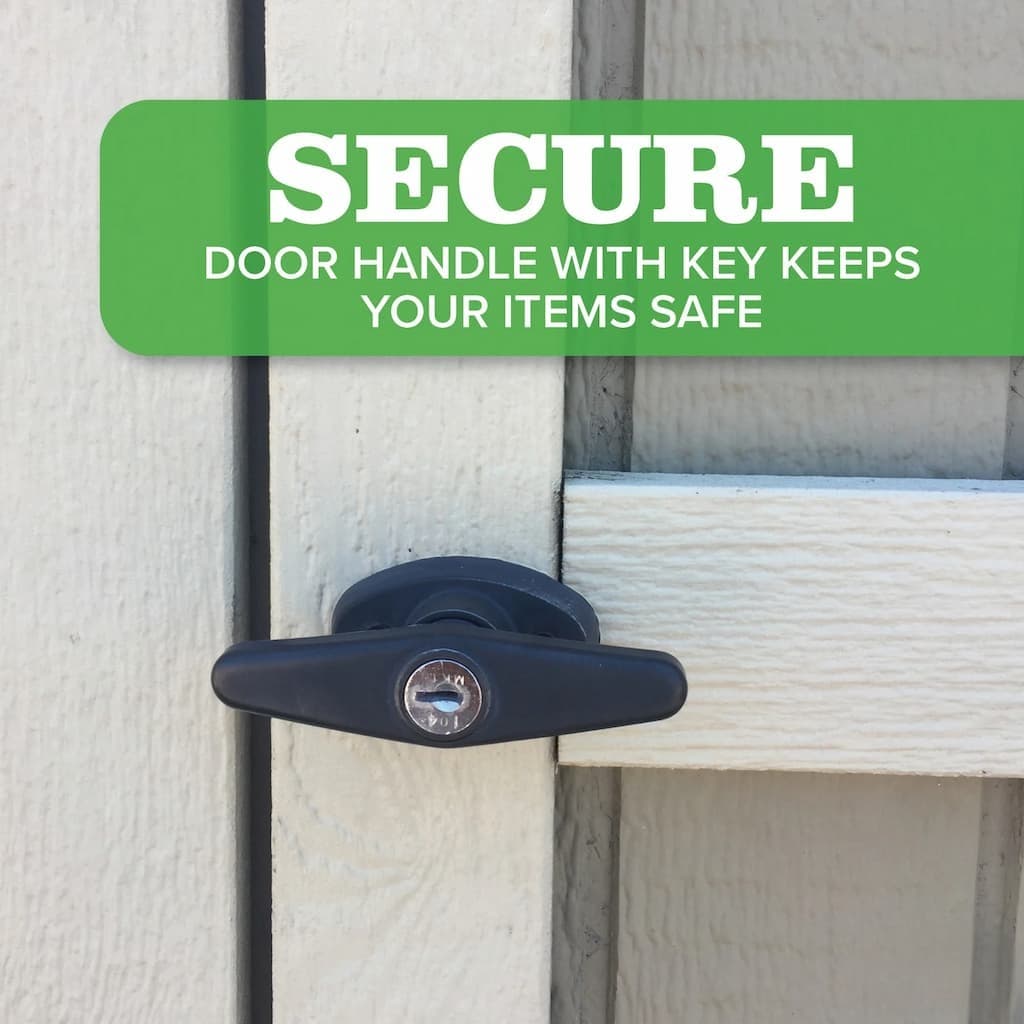

• Locking Door Handle: The shed comes with a locking door handle, providing an added layer of security for your stored items.

• Included hardware: All necessary screws, latches, and nails are included with the shed, so you won't need to worry about purchasing additional hardware.

 Classic Gambrel Barn Shed Kit SmartSiding walls

SmartSide Siding

SmartSide® products deliver all the warmth and beauty of traditional wood while delivering the enhanced durability and workability of engineered wood. With SmartGuard® technology, these products are built to outperform nature, providing exceptional strength, performance, and resistance against rot, termites, woodpeckers, hail, as well as the challenges posed by humid summers and cold winters. We’re proud to offer SmartSide® standard on all of our buildings.

Key Advantages

• 50-year prorated, limited warranty
• Treated with a Zinc Borate treatment
• Resistant to fungal decay and termite damage
• Attractive overlay on the interior
• Primed face

KIT INCLUDES:

• 4’ Double door on 8’ wide buildings
• 5’ Double door on 10’ and 12’ wide buildings
• Locking door handle latch
• 16’’ on center 2×4 framing for walls
• 45’’ high side walls
• 24’’ on center 2×4 trusses
• 5/12" Roof Pitch
• High-Quality LP SmartSide Siding and trim
• 7/16" thick and treated to resist rot and termite damage
• Roofing: 7' 16" OSB Roof Sheathing, 2" overhang

• All hardware and fasteners included
• Aluminum Gable Vents
• Printed Step by Step Manual with color pictures



NOTE: If you want to increase the shed door width by 2 feet kindly contact us at info@homesteadsupplier.com

CUSTOMER PROVIDES:

• Shingles
• Paint
• Floor (if the building is not purchased with a floor kit)
• If you will be preparing a cement/concrete slab, it would have to be exactly the same size as the unit. If the concrete slab is larger then you would have to trim the 3” skirt that falls below the bottom plate that is designed to wrap around the flooring.

The above items can easily be purchased by the customer at a local hardware store.

OPTIONAL FLOOR KIT:

• 2×4 treated floor joists – 16” O.C
• 5/8″ plywood Flooring material
• Should you wish to purchase the 12x24 Floor Kit please contact us to get a shipping quote.

If You're Building your own floor

• To build your own floor, the size of the floor will need to be the exact size of the shed
• We recommend a crushed stone base 1 wider on either side of the shed
• The siding overlaps the side of the wood floor roughly 3″ and there is no moisture barrier. You can put this on a cement slab or wood floor.

Do I need a Floor Kit? This depends on your preference. If you are not getting a floor kit from us, you can either build your own floor or create a cement slab for your shed. Please take note that it should be exactly the same size as the shed.

Additional Info:

Base: We recommend a crushed stone base, 1 foot wider than the building on all sides.

GAMBREL BARN COMPARISON

Value Gambrel Barn 6' Sidewalls	Classic Gambrel Barn 6' Sidewalls	Value Gambrel Barn 4' Sidewalls	Classic Gambrel Barn 4' Sidewalls
High quality 3/8” LP® SmartSide® siding with grooves 8” on-center primed and ready to paint	High quality 7/16” LP® SmartSide® siding with grooves 4” on-center primed and ready to paint	High quality 3/8” LP® SmartSide® siding with grooves 8” on-center primed and ready to paint	High quality 7/16” LP® SmartSide® siding with grooves 4” on-center primed and ready to paint
75.5” sidewalls with 2”x4” wall studs 24” on-center	76.5” sidewalls with 2”x4” wall studs 16” on-center	45.5” sidewalls with 2”x4” wall studs 24” on-center	46.5” sidewalls with 2”x4” wall studs 16” on-center
7/16” OSB roof sheeting	7/16” OSB roof sheeting	7/16” OSB roof sheeting	7/16” OSB roof sheeting
Double doors	Double doors with locking handle	Double doors	Double doors with locking handle
Aluminum corner trim	(2) gable vents	Aluminum corner trim	(2) gable vents

ASSEMBLY MANUAL
